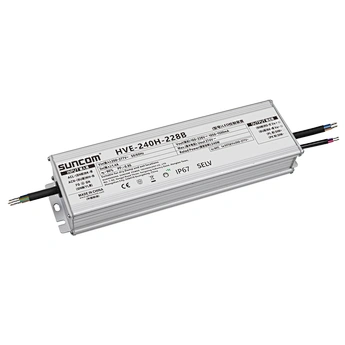

HVE 240H LED driver

HVE-240H-38A,B, HVE-240H-56A,B, HVE-240H-228A,B
The LED power adapter is constant current output waterproof driver, designed for LED luminaires like street lighting, industrial lighting and other applications.The three-in-one dimming version supports three modes of dimming: 1-10V, PWM, and resistance. With isolated, low THD and high PF features, this driver ensures high quality and safe operation. Choose the LED driver for reliable and efficient lighting solutions.

Version:
A-Adjustable potentiometer version
B- Three-in-one dimming version
Quantity:
Contact Now
Specifications
Experience superior lighting control with our cutting-edge LED power adapter and waterproof LED driver technology. Our waterproof drivers are designed to provide reliable performance in a variety of lighting applications, including street lighting, plant lighting, highbay lighting, stadium lighting, flood lighting, and other lighting lamps.
HVE 240H Led Power Adapter Parameters
Input voltage: 200-277V
Output voltage: 20-38V/32-56V/114-228V
Rated power: 240W
THD＜10%/PF＞0.95

Features of HVE 240H Led Power Adapter
Class I type for insulation
Constant current output, with power limitation for control mode
LED driver waterproof
Efficiency: 90%（Typ.）
Surge protection: 6/10KV
Metal material case, IP67
Protection: UVP/SCP/OVP/OTP
Global certifications: CCC/CE/CB
Dimming function: 3-in-1 dimming (1-10V dimming, resistance dimming, PWM dimming)
Output current is dimmed by external potentiometer (Only Type A)
Output current is dimmed by Isolated 3 in 1 dimmer (Only Type B)
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty:  5 years
Applications

Street lighting, plant lighting, highbay lighting, stadium lighting flood lighting and other lighting lamps

Model list
ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)Pf.(Typ)
HVE-240H-38A240W200-277V20-38V5200-7500mA243*69*36mm<10%>0.95
HVE-240H-38B200-277V20-38V5200-7500mA243*69*36mm<10%>0.95
HVE-240H-56A200-277V32-56V3500-5800mA243*69*36mm<10%>0.95
HVE-240H-56B200-277V32-56V3500-5800mA243*69*36mm<10%>0.95
HVE-240H-228A200-277V114-228V1050-1500mA243*69*36mm<10%>0.95
HVE-240H-228B200-277V114-228V1050-1500mA243*69*36mm<10%>0.95
