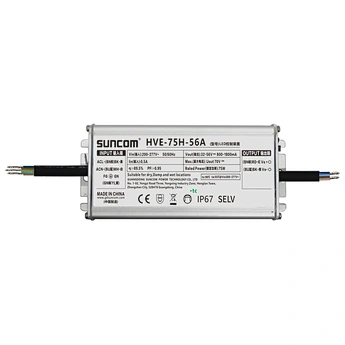

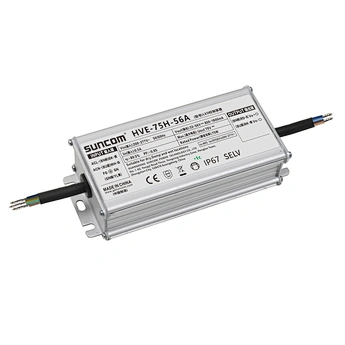

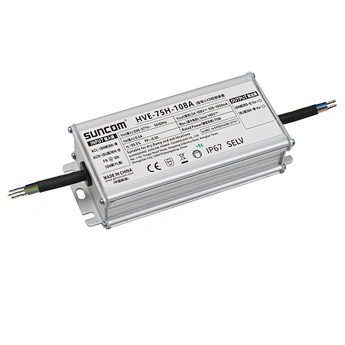

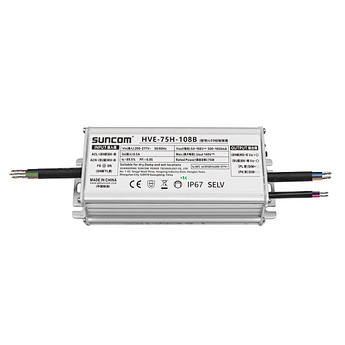

HVE 75H LED driver

HVE-75H-38A,B, HVE-75H-56A,B, HVE-75H-108A,B
A-Adjustable potentiometer version
B- Three-in-one dimming version
Quantity:
Contact Now
HVE 75H LED Current Driver Parameters
Input voltage: 200-277V
Output voltage: 20-38V/32-56V/54-108V
Rated power: 75W
Electrical performance parameters: THD＜10%/PF＞0.95

Features of HVE 75H LED Current Driver
Class I type for insulation
Constant current output ,with power limitation for control mode
Efficiency up to 89.5%（Typ.）
Surge protection: 4/6KV
Metal material case,  IP67
Protection:  UVP/SCP/OVP/OTP
Global certifications: CCC/CE/CB
Dimming function: 3-in-1 dimming (resistance dimming, 1-10V dimming, PWM dimming), other dimming
Output current is dimmed by external potentiometer ( Only Type A )
Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B）
Working temperature: -40 ~ +55℃
Safety case temperature: -40 ~ 90℃
Warranty:  5 years

Applications of HVE 75H LED Current Driver
Our innovative LED street light drivers play a crucial role in enhancing various lighting scenarios, such as street lighting, plant lighting, highbay lighting, landscape lighting, and stadium lighting.

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)PF.(Typ)
HVE-75H-38A75W200-277V20-38V1300-2400mA140*61*33mm<10%>0.95
HVE-75H-38B200-277V20-38V1300-2400mA140*61*33mm<10%>0.95
HVE-75H-56A200-277V32-56V800-1800mA140*61*33mm<10%>0.95
HVE-75H-56B200-277V32-56V800-1800mA140*61*33mm<10%>0,95
HVE-75H-108A200-277V54-108V500-1050mA140*61*33mm<10%>0.95
HVE-75H-108B200-277V54-108V500-1050mA140*61*33mm<10%>0.95
