HVE 30H LED driver

HVE-30H-38A,B,HVE-30H-56A,B
The LED driver is an adjustable constant current led driver, designed for LED luminaires like street lighting, industrial lighting and other applications.The three-in-one dimming version supports three modes of dimming: 1-10V, PWM, and resistance. With isolated, low THD and high PF features, this driver ensures high quality and safe operation. Choose the LED driver for reliable and efficient lighting solutions.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
Model:

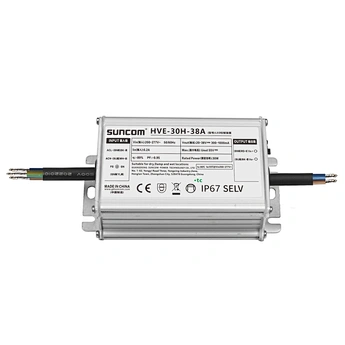

HVE-30H-38A

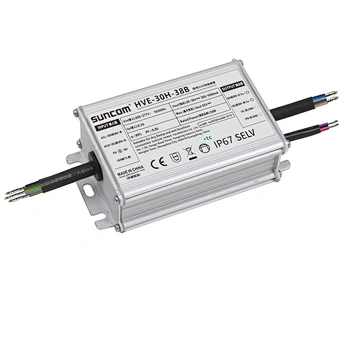

HVE-30H-38B
HVE-30H-56A

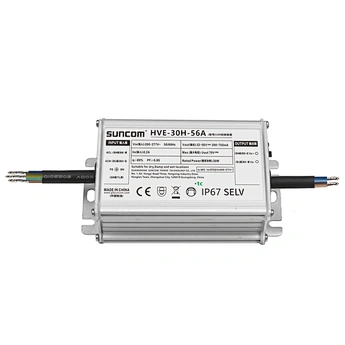

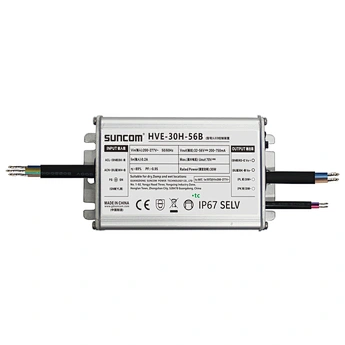

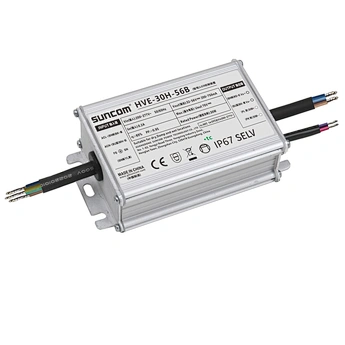

HVE-30H-56B
Quantity:
Contact Now
Specifications

Parameters

Input voltage: 200-277V
Output voltage: 20-38V/32-56V
Rated power: 30W
THD＜10%/PF＞0.95

Features
Class I type for insulation
Adjustable constant current led driver
Efficiency up to 89%（Typ.）
Surge protection: 4/6KV
Metal material case, IP67
Protection:  UVP/SCP/OVP/OTP
Global certifications: CCC/CE/CB
Dimming function: 3-in-1 dimming (resistance dimming, 1-10V dimming , PWM dimming)
Output current is dimmed by external potentiometer (Only Type A)
Output current is dimmed by Isolated 3 in 1 dimmer (Only Type B)
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40 ~ 80℃
Warranty:  5 years

Applications
Our LED driver solution covers a diverse array of applications, ranging from outdoor LED light drivers to street lighting, plant lighting, highbay lighting, flood lighting, and other lighting lamps.

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)Pf.(Typ)
HVE-30H-38A30W200-277V20-38V300-1000mA109*61*33mm<10%>0.95
HVE-30H-38B200-277V20-38V300-1000mA109*61*33mm<10%>0.95
HVE-30H-56A200-277V32-56V200-750mA109*61*33mm<10%>0.95
HVE-30H-56B200-277V32-56V200-750mA109*61*33mm<10%>0.95
