dimming led driver

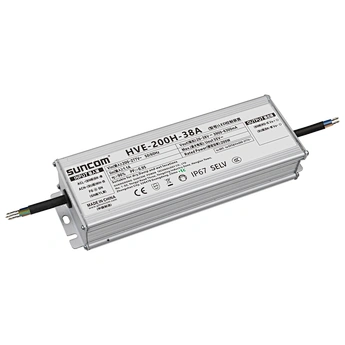

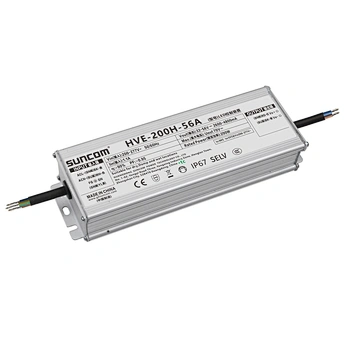

HVE 200H LED driver

HVE-200H-38A,B, HVE-200H-56A,B, HVE-200H-228A,B
A-Adjustable potentiometer version
B- Three-in-one dimming version
Quantity:
Contact Now
Specifications
Experience advanced lighting control with our dimming LED driver technology. Whether you're seeking a 200 watt dimmable LED driver or a reliable LED street light driver, our products excel in providing flexible and efficient solutions.

HVE 200 Watt Dimmable LED Driver Parameters
Input voltage: 200-277V
Output voltage: 20-38V/32-56V/95-190V
Rated power: 200W
Electrical performance parameters:  THD＜10%/PF＞0.95

Features
Class I type for insulation
Constant current output ,with power limitation for control mode
Efficiency up to 90%（Typ.）
Surge protection:  6/10KV
Metal material case,  IP67
Protection:  UVP/SCP/OVP/OTP
Global certifications: CCC/CE/CB
Dimming function: 3-in-1 dimming (1-10V dimming, resistance dimming, PWM dimming)
Output current is dimmed by external potentiometer (Only Type A)
Output current is dimmed by Isolated 3 in 1 dimmer (Only Type B)
Working temperature: -40 ~ +55℃ at 100-277Vac
Safety case temperature: -40 ~ 90℃
Warranty:  5 years


Applications of HVE 200 Watt Dimmable LED Driver

Street lighting, plant lighting,highbay lighting, flood lighting and other lighting lamps

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)Pf.(Typ)
HVE-200H-38A200W200-277V20-38V3900-6300mA211*69*36mm<10%>0.95
HVE-200H-38B200-277V20-38V3900-6200mA211*69*36mm<10%>0.95
HVE-200H-56A200-277V32-56V2600-4800mA211*69*36mm<10%>0.95
HVE-200H-56B200-277V32-56V2600-4800mA211*69*36mm<10%>0.95
HVE-200H-190A200-277V95-190V1050-1500mA211*69*36mm<10%>0.95
HVE-200H-190B200-277V95-190V1050-1500mA211*69*36mm<10%>0.95
