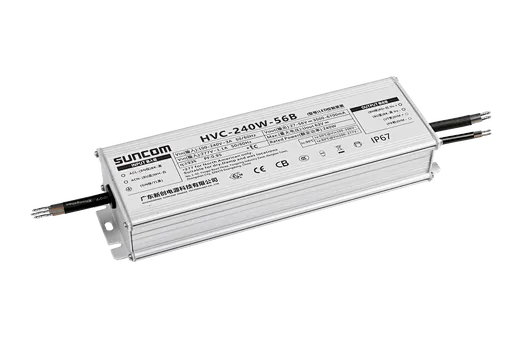

HVC 240W LED Driver

HVC-240-56A,B,C, HVC-240-343A,B,C,

HVC 240W LED driver is a dimmable LED power supply.
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
P-programming version

Quantity:

Contact Now

Specifications

HVC 240W Dimmable LED Power Supply Parameters

Input voltage: 100-277V
Output voltage: 27-56V/171-343V
Rated power: 240W
Electrical performance parameters: THD＜10%/PF＞0.95

Features of HVC 240W Dimmable LED Power Supply

Class I type for insulation

Isolated flicker free LED driver

Constant current output ,with power limitation for control mode

Dimming led driver constant current

Efficiency 93%（Typ.）

Surge: 6/10KV

Metal material case, protection grade against water and dust: IP67

Protection: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: Three-in-one dimming (resistance dimming, 1-10V dimming, PWM dimming) and 12V/0.25A auxiliary power

Working temperature: -40 ~ +55℃ at 120-277Vac

Safety case temperature: -40 ~ 90℃

Warranty: 5 years

Applications of HVC 240W Dimmable LED Power Supply

Led driver for street light , industrial lighting, stadium lighting, landscape lighting, plant lighting, etc.

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

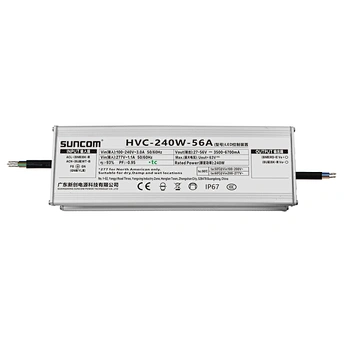

HVC-240W-56A	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56B	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56C	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56P	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95

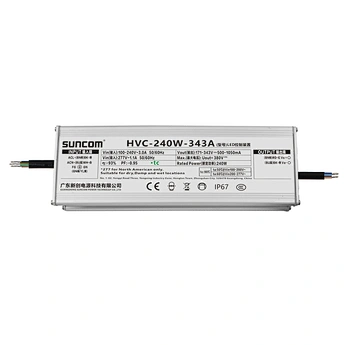

HVC-240W-343A	240W	100-277V	171-343V	500-1050mA	2256936mm	<10%	>0.95

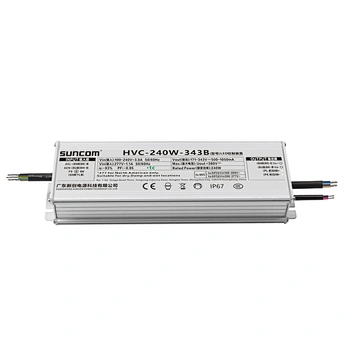

HVC-240W-343B	240W	100-277V	171-343V	500-1050mA	2256936mm	<10%	>0.95
HVC-240W-343C	240W	100-277V	171-343V	500-1050mA	2256936mm	<10%	>0.95

HVC-240W-XXX

More HVC product specifications
