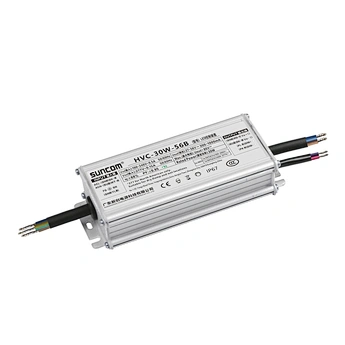

HVC 30W LED Driver
HVC-30W-56A,HVC-30W-56B,HVC-30W-56C
HVC 30W led driver is a led power supply constant current , specially designed for LED, with low harmonic (< 10%), high power factor(>0.95). Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection that greatly improve the safety and reliability of the product.
Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
Quantity:
HVC 30W Led Driver Parameters
Input voltage: 100-277V (Wide Input Voltage)
Output voltage: 27-56V
Rated power: 30W
THD＜10%/PF＞0.95
Features of HVC 30W led driver
Class I type for insulation
led power supply constant current
Metal material case, protection grade against water and dust: IP67
Isolated LED driver
flicker free LED driver
Surge protection: 4/6KV
Efficiency 89%（Typ.）
Protection: SCP/OVP/OTP
Global ceritifications: ENEC-CE/SAA/CCC/CB (C version is compliant with new ERP directive)
Warranty: 5 years
Dimming function: 3-in-1 dimming(1-10V dimming, resistor dimming, PWM signal dimming) and 12V auxiliary power
HVC 30W Led Driver Applications
Street lighting, industrial lighting, stadium lighting, landscape lighting, plant lighting, etc.
Model list
| Model | Rated Power | Input Voltage | Output Voltage | Outpot Current | Product Size | THD.(Typ) | Pf.(Typ) |
| HVC-30W-56A | 30W | 100-277V | 27-56V | 300-1000mA | 132*52*28mm | <10% | >0.95 |
| HVC-30W-56B | 30W | 100-277V | 27-56V | 300-1000mA | 132*52*28mm | <10% | >0.95 |
| HVC-30W-56C | 30W | 100-277V | 27-56V | 300-1000mA | 132*52*28mm | <10% | >0.95 |
| HVC-30W-XXX |
| More HVC product specifications |
