HVC 100W LED Driver

HVC-100W-56A,B,C, HVC-100W-143A,B,C

This product is a led street light driver, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version

Quantity:

Contact Now

Specifications

HVC 100W Dimmable LED Driver Parameters

Rated input voltage: 100-277V (Wide Input Voltage)

Output voltage: 27-56V/71-143V

Rated power: 100W

THD＜10%/PF＞0.95

Features of HVC 100W Dimmable LED Driver

Isolation,flicker free, constant current mode output

Metal material case, IP67

Efficiency 92%（Typ.）

Surge grade: 6/10KV

Protections: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: 3 in 1 dimming(1-10V dimming , resistance dimming, PWM signal dimming), AUX power(12V/0.25A)

Working temperature: -40 ~ +55℃

Safety case temperature: -40 ~ 90℃

Storage temperature: -40~+80℃

Warranty: 5 years

Application of HVC 100W Dimmable LED Driver

Street lighting, highbay lighting,plant lighting, staduim lighting and other lighting lamps

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

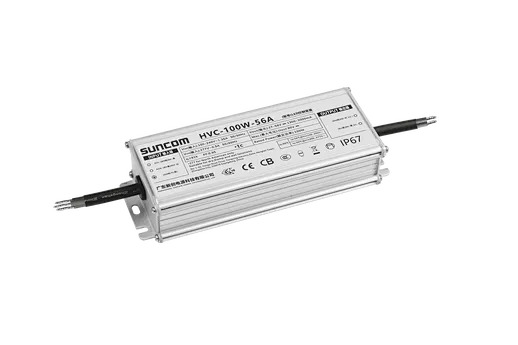

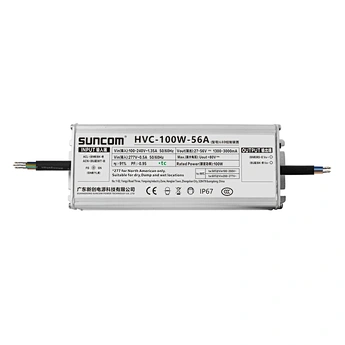

HVC-100W-56A	100W	100-277V	27-56V	1300-3000mA	1676133mm	<10%	>0.95
HVC-100W-56B	100W	100-277V	27-56V	1300-3000mA	1676133mm	<10%	>0.95
HVC-100W-56C	100W	100-277V	27-56V	1300-3000mA	1676133mm	<10%	>0.95

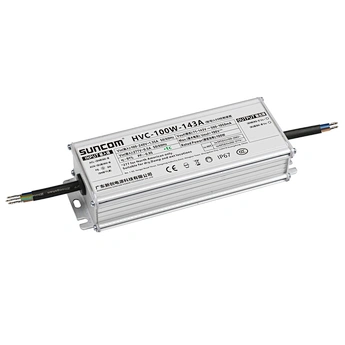

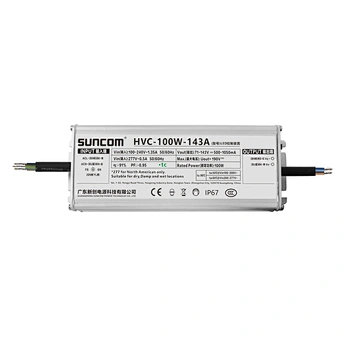

HVC-100W-143A	100W	100-277V	71-143V	500-1050mA	1676133mm	<10%	>0.95

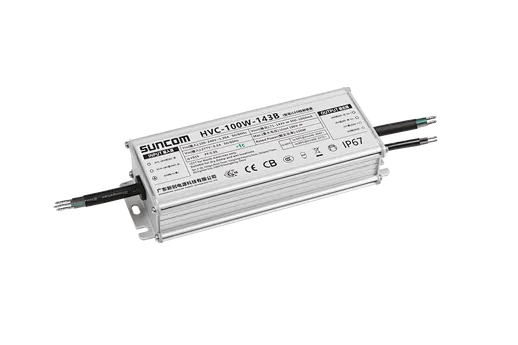

HVC-100W-143B	100W	100-277V	71-143V	500-1050mA	1676133mm	<10%	>0.95
HVC-100W-143C	100W	100-277V	71-143V	500-1050mA	1676133mm	<10%	>0.95

HVC-100W-XXX
