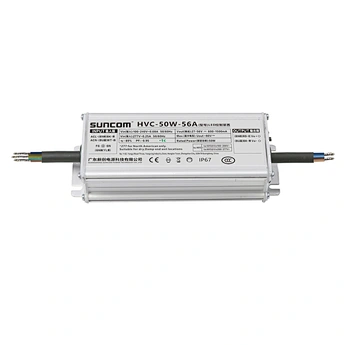

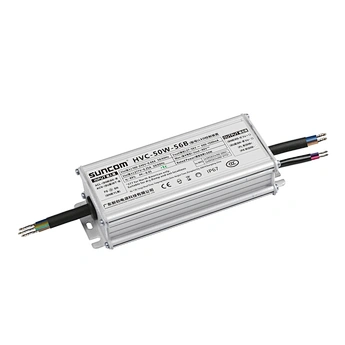

HVC 50W LED Driver

HVC-50W-56A,B,C, HVC-50W-72A,B,C
HVC 50W constant current led driver, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
Quantity:
Contact Now
Specifications

HVC 50W Constant Current LED Driver Parameters

Input voltage: 100-277V
Output voltage: 27-56V/36-72V
Rated power: 50W
Electrical performance parameters:  THD＜10%/PF＞0.95

Features of HVC 50W Constant Current LED Driver
Constant current output ,with power limitation for control mode
Isolated flicker free built-in street light driver
Ajustable led driver
High efficiency: 90%
Metal material case, IP67
Surge protection grade: 4/6KV
Protections:  SCP/OVP/OTP
Global certifications: ENEC-CE/SAA/CCC/CB (C version is compliant with new ERP directive)
Dimming function: Three-in-one dimming (1-10V dimming ,resistance dimming, PWM signal dimming) and 12V auxiliary power
Warranty:  5 years

Applications
Street lighting, highbay lighting and plant lighting, flood lighting stadium lighting and other lighting lamps

Model list
ModelRated PowerInput VoltageOutput VoltageOutput CurrentProduct SizeTHD.(Typ)Pf.(Typ)
HVC-50W-56A50W100-277V27-56V400-1700mA132*52*28mm<10%>0.95
HVC-50W-56B50W100-277V27-56V400-1700mA132*52*28mm<10%>0.95
HVC-50W-56C50W100-277V27-56V400-1700mA132*52*28mm<10%>0.95
HVC-50W-72A50W100-277V36-72V500-1050mA132*52*28mm<10%>0.95
HVC-50W-72B50W100-277V36-72V500-1050mA132*52*28mm<10%>0.95
HVC-50W-72C50W100-277V36-72V500-1050mA132*52*28mm<10%>0.95
