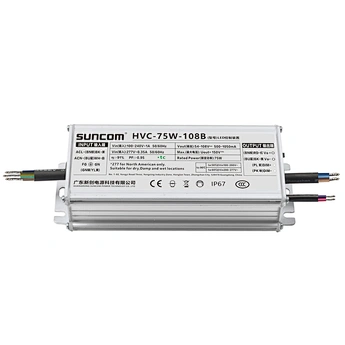

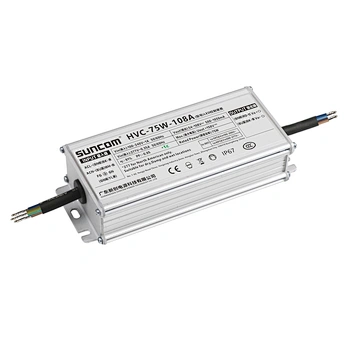

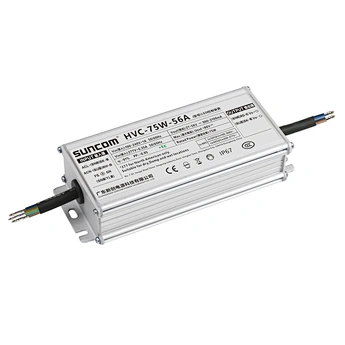

HVC 75W LED Driver

HVC-75W-56A,B,C, HVC-75W-108A,B,C

The LED driver is constant current output mode, designed for LED luminaires like street lighting, industrial lighting and other applications.The three-in-one dimming version supports three modes of dimming: 0-10V, PWM, and resistance. With flicker-free, isolated, and wide input voltage,high PF features, this driver ensures high quality and safe operation. Choose the HVC LED driver for reliable and efficient lighting solutions.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version

Quantity:

Contact Now

Specifications

HVC 75W LED Driver Parameters

Rated input voltage: 100-277V

Output voltage: 27-56V/54-108V

Rated power: 75W

Features of HVC 75W LED Driver

Constant current output ,with power limitation for control mode

Isolated LED driver

Driver flicker free

Surge grade: 6/10KV

Metal material case, protection grade against water and dust: IP67

Protections: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: 3-in-1 dimming (1-10V dimming,resistance dimming, PWM signal dimming) and 12V auxiliary power

Warranty: 5 years

Applications of HVC 75W LED Driver

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
HVC-75W-56A	75W	100-277V	27-56V	900-2100mA	1496133mm	<10%	>0.95
HVC-75W-56B	75W	100-277V	27-56V	900-2100mA	1496133mm	<10%	>0.95
HVC-75W-56C	75W	100-277V	27-56V	900-2100mA	1496133mm	<10%	>0.95
HVC-75W-108A	75W	100-277V	54-108V	500-10500mA	1496133mm	<10%	>0.95
HVC-75W-108B	75W	100-277V	54-108V	500-10500mA	1496133mm	<10%	>0.95
HVC-75W-108C	75W	100-277V	54-108V	500-10500mA	1496133mm	<10%	>0.95

HVC-75W-XXX
