HVC 200W LED Driver

HVC-200W-56A,B,C, HVC-200W-286A,B,C
This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
P-Programming version
Quantity:
Contact Now
Specifications

HVC 200W Dimmable LED Driver Parameters
Rated input voltage:  100-277V
Output voltage: 27-56V/143-286V
Rated power: 200W
THD＜10%/PF＞0.95

Features of HVC 200W Dimmable LED Driver
Isolated flicker free street light LED driver
Constant current output ,with power limitation for control mode
High efficiency up to 93%（Typ.）
Metal material case, IP67
Surge protection grade:  6/10KV
Protections: SCP/OVP/OTP
Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)
Dimming function: Three-in-one dimming (resistance dimming, 1-10V dimming , PWM dimming) and 12V/0.25A auxiliary power
Working temperature: -40 ~ +55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty:  5 years

Applications of High Efficiency LED Drivers
Street lighting, industrial lighting, stadium lighting, plant lighting and other lighting lamps

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)Pf.(Typ)

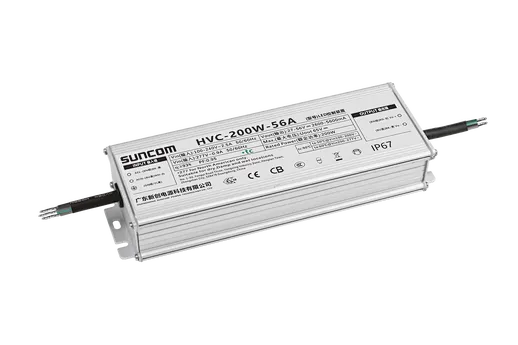

HVC-200W-56A200W100-277V27-56V2600-5600mA211*69*36mm<10%>0,95
HVC-200W-56B100-277V27-56V2600-5600mA211*69*36mm<10%>0,95
HVC-200W-56P100-277V27-56V2600-5600mA211*69*36mm<10%>0,95
HVC-200W-56C100-277V27-56V2600-5600mA211*69*36mm<10%>0,95

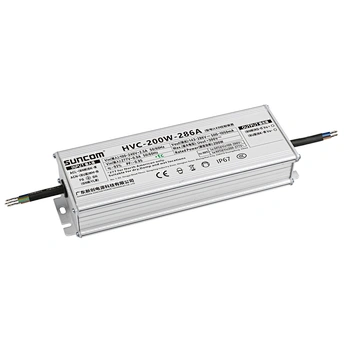

HVC-200W-286A100-277V143-286V500-1050mA211*69*36mm<10%>0,95

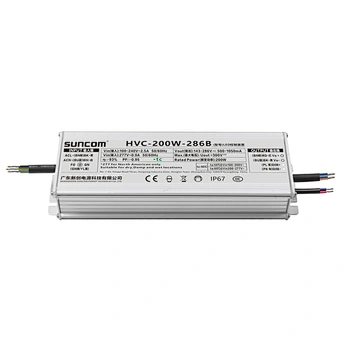

HVC-200W-286B100-277V143-286V500-1050mA211*69*36mm<10%>0,95
HVC-200W-286C100-277V143-286V500-1050mA211*69*36mm<10%>0,95
