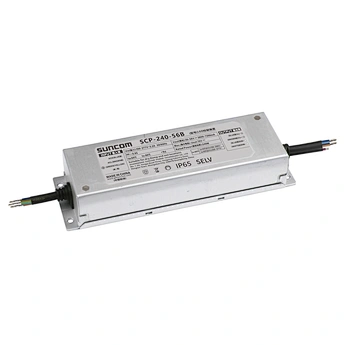

SCP 240W LED Driver

SCP-240-38A,B, SCP-240-56A,B

This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version

Quantity:

Contact Now

Specifications

SCP 240W LED Driver Parameters

Input voltage: 100-277V
Output voltage: 20-38V/27-56V
Rated power: 240W
THD＜10%/PF＞0.95

Features of SCP 240W LED Driver

Class I type for insulation

Isolation, constant current mode output

Driver led dimmable

Efficiency : 93%（Typ.）
Surge protection: 6/10KV
IP65
Protection: SCP/OVP/OTP
Global certifications: CB (Compliant with SASO2927 street lamp standard)
Dimming function: 3 in 1 dimming(dim-to-off) : 0-10V dimming/PWM dimming/resistance dimming
Working temperature: -40 ~ +60℃ (Typ.: 25℃)
Maximum case temperature: 90℃

Storage temperature: -40~85℃ (Typ.: 25℃)
Warranty: 5 years

Application of SCP 240W LED Driver

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	PF.(Typ)
SCP-240-38A	240W	100-277V	20-38V	3800-7200mA	21167.538.5mm	<10%	>0.95
SCP-240-38B		100-277V	20-38V	3800-7200mA	21167.538.5mm	<10%	>0.95
SCP-240-56A		100-277V	27-56V	2900-5800mA	21167.538.5mm	<10%	>0.95
SCP-240-56B		100-277V	27-56V	2900-5800mA	21167.538.5mm	<10%	>0.95

SCP-240-XXX
