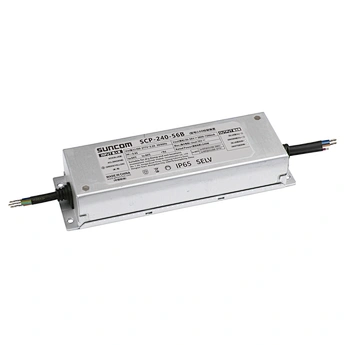

SCP-300 LED driver

SCP-300-56A,B
This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
Quantity:
Contact Now
Specifications
SCP 300W LED Street Light Driver Parameters
Input voltage: 100-277V
Output voltage: 27-56V
Rated power: 300W
Electrical performance parameters:  THD＜10%/PF＞0.95
Features of SCP 300W LED Street Light Driver
Class I type for insulation
Isolation power supply
constant current mode output
Efficiency up to 92%（Typ.）
Surge protection:  6/10KV
IP65
Protection:  SCP/OVP/OTP
Global certifications: CB (Compliant with SASO2927 street lamp standard)
Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming
Working temperature: -40 ~ +60℃ (Typ.: 25℃)
Maximum case temperature: 90℃
Storage temperature: -40~85℃ (Typ.: 25℃)
Warranty:  5 years
Applications of SCP 300W LED Street Light Driver
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting
Model list
Model
Rated Power
Input Voltage
Output Voltage
Outpot Current
Product Size
THD.(Typ)
Pf.(Typ)
SCP-300-56A
300W
100-277V
27-56V
3800-7200mA
230*69*38mm
<10%
>0.95
SCP-300-56B
100-277V
27-56V
3800-7200mA
230*69*38mm
<10%
>0.95
