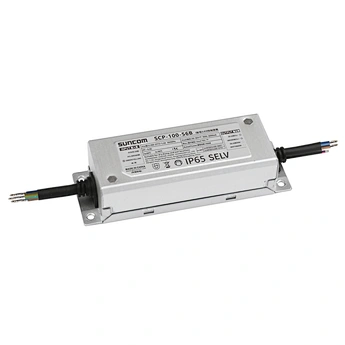

SCP 100W LED Driver
SCP-100-38A,B SCP-100-56A,B
This product is a constant current drive power supply, Specially designed for LED, with low harmonic (<10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.
Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
Quantity:
Our versatile range of lighting solutions includes high-quality options for a variety of applications such as street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, and plant lighting. For instance, our advanced 100W LED flood light driver and 100W LED light driver are specifically designed to cater to the needs of these diverse lighting scenarios. We also offer OEM led drivers, so feel free to contact us.
SCP 100W LED Light Driver Parameters
Input voltage: 100-277V
Output voltage: 20-38V/27-56V
Rated power: 100W
THD＜10%/PF＞0.95
Output voltage: 20-38V/27-56V
Rated power: 100W
THD＜10%/PF＞0.95
Features of SCP 100W LED Light Driver
Class I type for insulation
Isolation, constant current mode output
Efficiency : 92%（Typ.）
Surge protection: 6/10KV
IP65
Protection: SCP/OVP/OTP
Global certifications: CB (Compliant with SASO2927 street lamp standard)
Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming
Working temperature: -40 ~ +60℃ (Typ.: 25℃)
Maximum case temperature: 90℃
Surge protection: 6/10KV
IP65
Protection: SCP/OVP/OTP
Global certifications: CB (Compliant with SASO2927 street lamp standard)
Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming
Working temperature: -40 ~ +60℃ (Typ.: 25℃)
Maximum case temperature: 90℃
Storage temperature: -40~85℃ (Typ.: 25℃)
Warranty: 5 years
Warranty: 5 years
Applications
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting
Model list
| Model | Rated Power | Input Voltage | Output Voltage | Outpot Current | Product Size | THD.(Typ) | Pf.(Typ) |
| SCP-100-38A | 100W | 100-277V | 20-38V | 1500-3000mA | 142*49*33mm | <10% | >0,95 |
| SCP-100-38B | 100-277V | 20-38V | 1500-3000mA | 142*49*33mm | <10% | >0,95 | |
| SCP-100-56A | 100-277V | 27-56V | 1300-2600mA | 142*49*33mm | <10% | >0,95 | |
| SCP-100-56B | 100-277V | 27-56V | 1300-2600mA | 142*49*33mm | <10% | >0,95 |
| SCP-100-XXX |
| More SCP product specifications |
