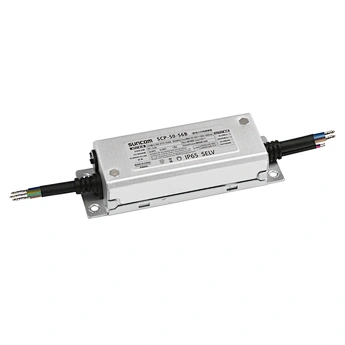

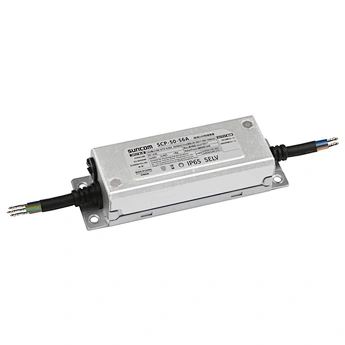

SCP 50W LED Driver

SCP-50-38A,B, SCP-50-56A,B

This product is a constant current LED drive , specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product.

A-Adjustable potentiometer version
B-Three-in-one dimming version

Quantity:

Contact Now

Specifications

SCP 50W LED Street Light Driver Parameters

Input voltage: 100-277V
Output voltage: 20-38V/27-56V
Rated power: 50W
Electrical performance parameters: THD＜10%/PF＞0.95

Features of SCP 50W LED Street Light Driver

Class I type for insulation

Isolation power supply

constant current mode output

Efficiency up to 90%（Typ.）
Surge protection: 6/10KV
IP65
Protection: SCP/OVP/OTP
Global certifications: CB (Compliant with SASO2927 street lamp standard)
Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming
Working temperature: -40 ~ +60℃ (Typ.: 25℃)
Maximum case temperature: 90℃

Storage temperature: -40~85℃ (Typ.: 25℃)
Warranty: 5 years

Applications of SCP 50W LED Street Light Driver

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
SCP-50-38A	50W	100-277V	20-38V	750-1500mA	1264129mm	<10%	>0.95
SCP-50-38B		100-277V	20-38V	750-1500mA	1264129mm	<10%	>0.95
SCP-50-56A		100-277V	27-56V	600-1200mA	1264129mm	<10%	>0.95
SCP-50-56B		100-277V	27-56V	600-1200mA	1264129mm	<10%	>0.95

SCP-50-XXX

More SCP product specifications
