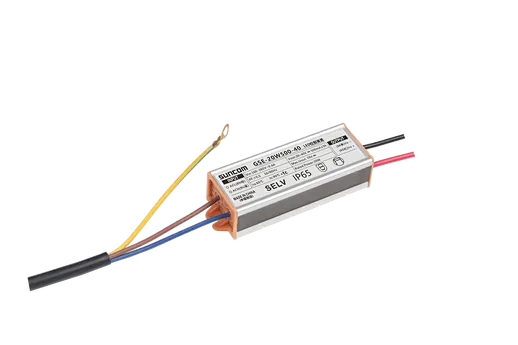

GSE 20W LED Driver

GSE-20W450-45,20W500-40,20W600-35

The GSE LED driver is a high-quality power supply designed for LED lighting. Its isolated design ensures that there is no risk of electric shock, making it safe for use in any setting. With a compact size and lightweight design, it can be easily installed in a variety of locations. Its high efficiency ensures that energy is not wasted, making it an environmentally friendly choice. This driver is ideal for use in residential and industrial LED lighting applications.

Quantity:

Contact Now

Specifications

GSE 20W LED Driver Parameters

Rated input voltage: 100-265V

Output voltage: 20-45V/20-40V/20-36V

Rated power: 20W

Max current ripple: <±10％

Features

GSE: Low PF isolated semi-aluminum waterproof LED driver

Isolation without flicker LED driver, constant current output mode LED driver

Protection: Output OCP /SCP /OTP

IP grade: IP65

Surge protection grade: 2KV

Efficiency: ≥88%

Working temperature: -40 ~ 65℃ (Typ. 25℃ )
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃ (Typ. 25℃ )

Working humidity: 20％ RH ~ 90％ RH

Storage humidity: 10％ RH ~ 90％ RH

Warranty: 3 years

Application of Driver LED 20W

Build-in lambs such as garden lights,lawn lights, flood lights,three-proof lights,wall lights,etc

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	Surge
GSE-20W450-45	20W	100-265V	20-45V	450mA±5%	903020mm	2KV
GSE-20W500-40		100-265V	20-40V	500mA±5%	903020mm	2KV
GSE-20W600-35		100-265V	20-36V	600mA±5%	903020mm	2KV
