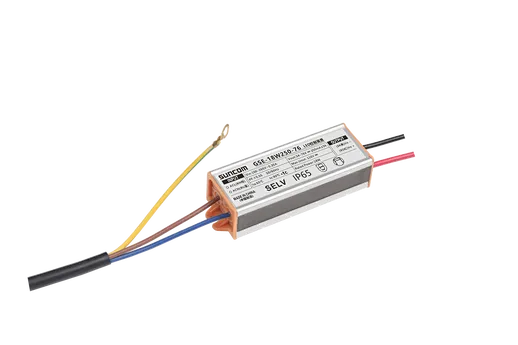

GSE 18W LED Driver
GSE-18W250-76,18W300-63
The GSE LED driver is a high-quality power supply designed for LED lighting. Its isolated design ensures that there is no risk of electric shock, making it safe for use in any setting. With a compact size and lightweight design, it can be easily installed in a variety of locations. Its high efficiency ensures that energy is not wasted, making it an environmentally friendly choice. This driver is ideal for use in residential and industrial LED lighting applications.
Quantity:
GSE 18W LED Driver Parameters
Rated input voltage: 100-265V
Output voltage: 34-76V/34-63V
Rated power: 18W
Max current ripple: <±10％
Features of LED Driver 18 Watt
Low PF isolated semi-aluminum waterproof LED driver
Isolation, flicker free LED driver, constant current LED driver
Protection: Output OCP /SCP /OTP
IP grade: IP65
Surge protection grade: 2KV
Efficiency: ≥87%
Working temperature: -40 ~ 65℃ (Typ. 25℃ )
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃ (Typ. 25℃ )
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃ (Typ. 25℃ )
Working humidity: 20％ RH ~ 90％ RH
Storage humidity: 10％ RH ~ 90％ RH
Warranty: 3 years
Application
Build-in lambs such as garden lights,lawn lights, flood lights,three-proof lights,wall lights,etc
Model list
| Model | Rated Power | Input Voltage | Output Voltage | Outpot Current | Product Size | Surge |
| GSE-18W250-76 | 18W | 100-265V | 34-76V | 250mA±5% | 90*30*20mm | 2KV |
| GSE-18W300-63 | 100-265V | 34-63V | 300mA±5% | 90*30*20mm | 2KV |
