200w constant current led driver

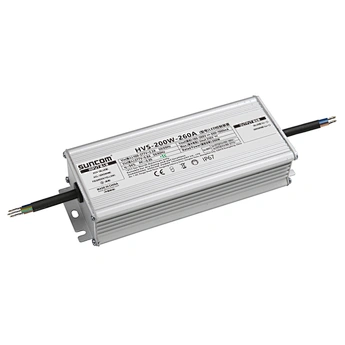

HVS 200W LED Driver

HVS-200W-260A,B,C,HVS-200W-150B,HVS-200W-260B
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version (optional Dim-to-Off )
Quantity:
Contact Now
Specifications
HVS 200W Constant Current Led Driver Parameter
Input voltage range: 100-277V
Output voltage: 180-260V
Rated power: 200W
THD＜10%/PF＞0.95

Features of High Quality LED Driver
Class I type for insulation
Constant current output , with power limitation for control mode, non-isolated, flicker free
Efficiency: ≥94%
Surge protection: 6/10KV
Metal material case, IP67
Protections: SCP/OTP/OVP
Certifications: CCC/CE/CB (C version is compliant with the new ERP standard)
Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power
Output current is dimmed by external potentiometer (Only Type A)
Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B）
Output current is dimmed by Isolated 3 in 1 dimmer and 12V auxiliary source（Only Type C )
Working temperature: -40~55℃ at 100-277Vac
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty: 5 years

Application
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting , plant lighting

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)Pf.(Typ)

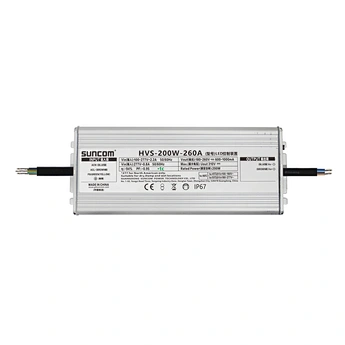

HVS-200W-260A200W100-277V180-260V550-1050mA150*65*38mm<10%>0,95

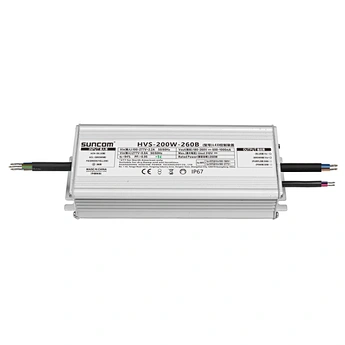

HVS-200W-260B100-277V180-260V550-1050mA150*65*38mm<10%>0,95

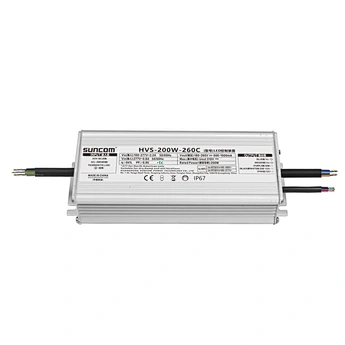

HVS-200W-260C100-277V180-260V550-1050mA150*65*38mm<10%>0,95
