led driver 50w

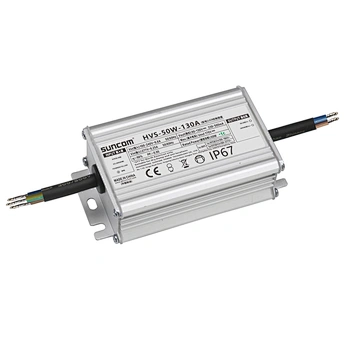

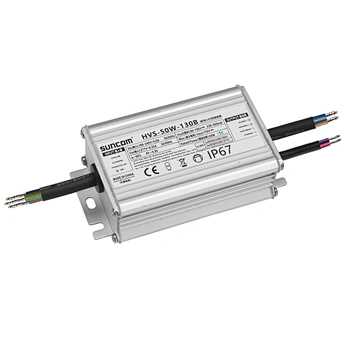

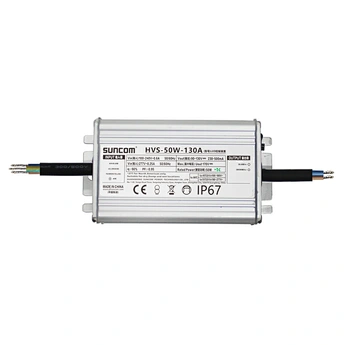

HVS 50W LED Driver

HVS-50W-130A,HVS-50W-130B,HVS-50W-130C,HVS-50W-150B,HVS-50W-260A,B
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version (optional Dim-to-off )
Quantity:
Contact Now
Specifications
HVS 50W LED Panel Driver Parameter
Input voltage: 100-277V
Output voltage: 90-130V
Rated power: 50W
THD＜10%/PF＞0.95

Features HVS 50W LED Panel Driver
Class I type for insulation
Constant current output , with power limitation for control mode, non-isolated, flicker free
Efficiency up to 90%（Typ.）
Surge protection: 4/6KV
Metal material case, protection grade against water and dust: IP67
Protections: SCP/OTP/OVP
Certifications: CCC/CE/CB (C version is compliant with the new ERP standard)
Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power
Output current is dimmed by external potentiometer
Output current is dimmed by Isolated 3 in 1 dimmer
Working temperature: -40 ~ +55℃  at 120-277Vac
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty: 5 years

Application of LED Driver 50W
Our comprehensive array of lighting solutions encompasses a wide spectrum of applications, including street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, and plant lighting. Additionally, we offer specialized LED driver for panel light, further enhancing the versatility and efficiency of our product offerings.

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)PF.(Typ)
HVS-50W-130A50W100-277V90-130V260-500mA105*56*32mm<10%>0.95
HVS-50W-130B100-277V90-130V260-500mA105*56*32mm<10%>0.95
HVS-50W-130C100-277V90-130V260-500mA105*56*32mm<10%>0.95
