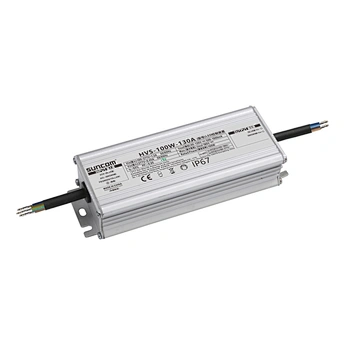

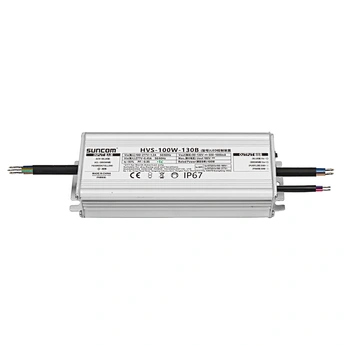

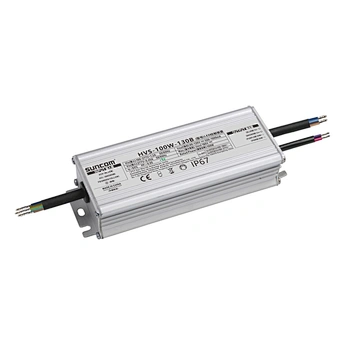

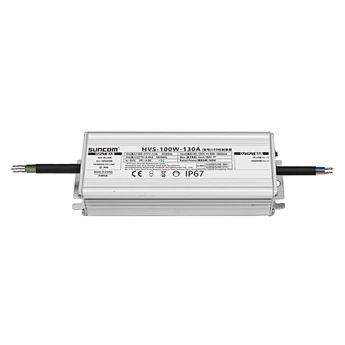

HVS 100W LED Driver

HVS-100W-130A,B,C,HVS-100W-150B,HVS-100W-260B
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version (optional Dim-to-Off )
Quantity:
Contact Now
Specifications
HVS 100W LED Panel Light Driver Parameter
Input voltage range: 100-277V
Output voltage: 90-130V
Rated power: 100W
THD＜10%/PF＞0.95

Features HVS 100W LED Panel Light Driver
Class I type for insulation
Constant current output , with power limitation for control mode, non-isolated
Flicker free led driver
Efficiency up to 93% （Typ.）
Surge protection: 6/10KV
Metal material case, protection grade against water and dust: IP67
Protections: SCP/OTP/OVP
Certifications: CCC/CE/CB (C version is compliant with the new ERP standard)
Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power
Output current is dimmed by external potentiometer (Only Type A)
Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B）
Output current dimmed by isolated 3-in-1 dimmer +12V auxiliary power output（Only Type C）
Working temperature: -40~55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty: 5 years

Application of HVS 100 Watt Driver
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting , plant lighting

Model list

ModelRated PowerInput VoltageOutput VoltageOutpot CurrentProduct SizeTHD.(Typ)PF.(Typ)
HVS-100W-130A100W100-277V90-130V800-1500mA136*56*32mm<10%>0.95
HVS-100W-130B100-277V90-130V800-1500mA136*56*32mm<10%>0.95
HVS-100W-130C100-277V90-130V800-1500mA136*56*32mm<10%>0.95
