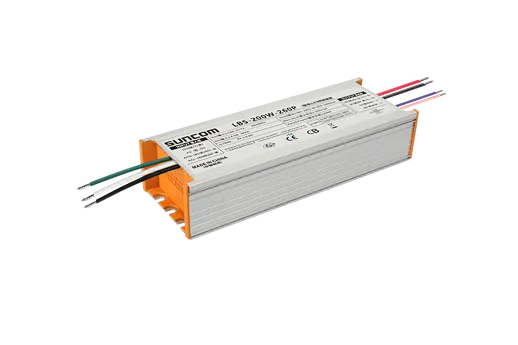

LBS 200W LED driver
LBS-200W-260A,LBS-200W-260P,LBS-200W-260L
A-Adjustable potentiometer version
P-Off-line programming dimming version
L-Light controlled version
P-Off-line programming dimming version
L-Light controlled version
Quantity:
Parameters:
Input voltage: 120-277V
Output voltage: 180-260V
Rated power: 200W
THD<10%/PF>0.95
Features:
Protections: Input UVP(Power off when voltage<90V), output SCP/OVP/OTP
Certificate: CE/CB/ENEC
Surge: 6/6kV
Efficiency: 90%-95.5% (Typ.)
IP grade: IP42
Warranty: 5 years
Remark: For build-in use only, lamp housing need to be waterproof
Applications:
Middle and high-end shoebox light,wall light,flood light flat mining light, three anti light,plant light
Model list:
| Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | Product size | THD | PF |
| LBS-200W-260A | 200W | 120-277V | 180-260V | 200-260V | 600-1000mA | 188*61*37mm | <10% | >0.95 |
| LBS-200W-260P | 120-277V | 180-260V | 200-260V | 600-1000mA | 188*61*37mm | <10% | >0.95 | |
| LBS-200W-260L | 120-277V | 180-260V | 200-260V | 600-1000mA | 188*61*37mm | <10% | >0.95 |
