How to Connect Dimmable LED Driver
2023-12-19
Understanding LED Dimmable Drivers
In the world of lighting, there are many factors to consider. While LEDs are widely known as one of the high performance solutions, LED dimmable drivers are less known.
To understand LED dimmable drivers, you need to first understand what they are and what they do. Usually, an LED driver provides power to LED lamps. With an LED dimmable driver, you get that same electrical current management system with the built-in option of dimming the lamps.
One prevalent misunderstanding when it comes to comprehending LED dimmable drivers is the belief that they may not be necessary at all. Given that LED lighting is acknowledged as a leader in dimmable capabilities, surpassing comparative fluorescent lamps, many assume that simply plugging an LED lamp into any fixture will enable dimming. However, this is not always the case, as achieving dimming effects with an LED lamp typically requires the presence of an LED dimmable driver. While connecting LED lamps directly to any fixture may not guarantee dimming properties, it is likely that connecting them to an LED fixture equipped with a compatible LED driver will achieve the desired effect. Most LED drivers support dimming when used in conjunction with LED lamps.
There is also some confusion surrounding the concepts of series and parallel connections. In a series configuration, an LED's anode (positively charged electrode) is connected to the cathode (negatively charged electrode) of the next LED, creating a continuous current flow through each LED in the connection. This arrangement allows for dimming capabilities because it operates as a single current rather than each LED having its own current source. On the other hand, a parallel configuration involves connecting LED lamps side by side to a driver. This option is often chosen to reduce the voltage required to operate a string of series-configured lights. Regardless of the configuration employed in your fixture, the driver is capable of providing dimmable capabilities.
Another common concern revolves around whether dimming LED capabilities negatively impact the lifespan of the fixture or lamps. Fortunately, as long as your dimmable lamps are paired with a compatible driver, there is no adverse effect on the longevity of your fixture or lamps. The primary purpose of the dimmable driver is to ensure a prolonged and highly efficient operational life for the entire lighting setup.
To understand LED dimmable drivers, you need to first understand what they are and what they do. Usually, an LED driver provides power to LED lamps. With an LED dimmable driver, you get that same electrical current management system with the built-in option of dimming the lamps.
One prevalent misunderstanding when it comes to comprehending LED dimmable drivers is the belief that they may not be necessary at all. Given that LED lighting is acknowledged as a leader in dimmable capabilities, surpassing comparative fluorescent lamps, many assume that simply plugging an LED lamp into any fixture will enable dimming. However, this is not always the case, as achieving dimming effects with an LED lamp typically requires the presence of an LED dimmable driver. While connecting LED lamps directly to any fixture may not guarantee dimming properties, it is likely that connecting them to an LED fixture equipped with a compatible LED driver will achieve the desired effect. Most LED drivers support dimming when used in conjunction with LED lamps.
There is also some confusion surrounding the concepts of series and parallel connections. In a series configuration, an LED's anode (positively charged electrode) is connected to the cathode (negatively charged electrode) of the next LED, creating a continuous current flow through each LED in the connection. This arrangement allows for dimming capabilities because it operates as a single current rather than each LED having its own current source. On the other hand, a parallel configuration involves connecting LED lamps side by side to a driver. This option is often chosen to reduce the voltage required to operate a string of series-configured lights. Regardless of the configuration employed in your fixture, the driver is capable of providing dimmable capabilities.
Another common concern revolves around whether dimming LED capabilities negatively impact the lifespan of the fixture or lamps. Fortunately, as long as your dimmable lamps are paired with a compatible driver, there is no adverse effect on the longevity of your fixture or lamps. The primary purpose of the dimmable driver is to ensure a prolonged and highly efficient operational life for the entire lighting setup.
How to Connect a Dimmable Driver？

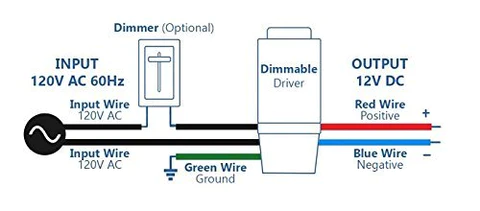

Here is an example of how a dimmable driver is typically installed. Please refer to the instructions that are included with your dimmable switch and dimmable driver to make sure it matches.
In most cases, a dimmable driver installs almost identically to a non-dimmable power supply. You will need to connect the positive and negative wires on the DC (output) side of the driver to the LED strip (or other low voltage lighting product). The neutral and ground wires will be connected directly to the power source on the AC (input) side. The live wire from your household power source will be connected to the input of the dimmable switch and the output of the dimmable switch will then be connected to the live wire of the dimmable driver.
NOTE : Review the materials included with your dimmer switch and dimmable driver, as many installations will also require connecting the dimmer switch to ground.
You can connect the wires using wire nuts, bolts, splices, or any other connectors that meet the code in your location. Be sure to run your wires through walls to keep them hidden from view as well as to protect them from accidental contact.
Now we’re dimmable!
A quality LED light strip installation that includes a dimmable driver is far superior to plug-in dimmers, as you will be able to control your lights with an automated dimmer that is integrated with your security or home automation system, which will enable you to control your lights (in some cases). If you're an electrician or installer, it will prove to your client that you are knowledgeable in your field - and it will help you justify their expenditures.
In most cases, a dimmable driver installs almost identically to a non-dimmable power supply. You will need to connect the positive and negative wires on the DC (output) side of the driver to the LED strip (or other low voltage lighting product). The neutral and ground wires will be connected directly to the power source on the AC (input) side. The live wire from your household power source will be connected to the input of the dimmable switch and the output of the dimmable switch will then be connected to the live wire of the dimmable driver.
NOTE : Review the materials included with your dimmer switch and dimmable driver, as many installations will also require connecting the dimmer switch to ground.
You can connect the wires using wire nuts, bolts, splices, or any other connectors that meet the code in your location. Be sure to run your wires through walls to keep them hidden from view as well as to protect them from accidental contact.
Now we’re dimmable!
A quality LED light strip installation that includes a dimmable driver is far superior to plug-in dimmers, as you will be able to control your lights with an automated dimmer that is integrated with your security or home automation system, which will enable you to control your lights (in some cases). If you're an electrician or installer, it will prove to your client that you are knowledgeable in your field - and it will help you justify their expenditures.
What Are the Different Types of Dimmable LED Drivers?
Dimmable LED drivers come in various types, each catering to specific applications and dimming methods. Here are some of the common types of dimmable LED drivers:
1.Triac Dimmable LED Drivers
- Description: Triac dimmable LED drivers are designed to work with traditional phase-cut dimmers, commonly used in residential and commercial settings.
- Application: Suitable for retrofitting existing lighting systems with dimming capabilities.
2.0-10V Dimmable LED Drivers
- Description: These drivers utilize a 0-10V control signal for dimming. The voltage level determines the dimming level, allowing for smooth and continuous dimming.
- Application: Commonly used in commercial lighting systems and applications where precise dimming control is required.
3.PWM Dimmable LED Drivers
- Description: Pulse Width Modulation (PWM) dimmable drivers adjust the LED brightness by varying the duty cycle of the electrical pulses. Higher duty cycles result in increased brightness.
- Application: Widely used in applications requiring high-frequency dimming control, such as stage lighting and some residential settings.
4.DALI Dimmable LED Drivers
- Description: Digital Addressable Lighting Interface (DALI) dimmable drivers allow for individual control of each LED fixture within a DALI network. It's a two-way communication system.
- Application: Ideal for large commercial and industrial installations where precise and flexible lighting control is crucial.
5.DMX Dimmable LED Drivers
- Description: Similar to DALI, Digital Multiplex (DMX) dimmable drivers provide a digital communication protocol for controlling lighting fixtures. Commonly used in stage and entertainment lighting systems.
- Application: Suitable for dynamic lighting setups where synchronized control of multiple fixtures is required.
6.Phase-Cut Dimmable LED Drivers
- Description: Phase-cut dimmable drivers work with phase-cut dimmers, commonly used in residential settings. They are available in both leading-edge and trailing-edge versions.
- Application: Suitable for retrofitting existing residential lighting systems with phase-cut dimming.
7.Wireless Dimmable LED Drivers
- Description: These drivers incorporate wireless communication protocols such as Zigbee or Bluetooth, allowing for remote and wireless dimming control.
- Application: Ideal for smart home or commercial lighting setups where wireless control and automation are desired.
8.Analog Dimmable LED Drivers
- Description: Analog dimmable drivers adjust LED brightness based on an analog voltage signal. The dimming level correlates with the voltage level.
- Application: Suitable for various applications where simple and cost-effective dimming control is required.
Dimmable LED Power Supplies
If you are looking for a dimmable LED driver and can’t find what you are looking for by browsing this website, don’t worry. Simply contact Gdsuncom and we will advise you which dimmable LED driver is best suited to your LED light fitting.
