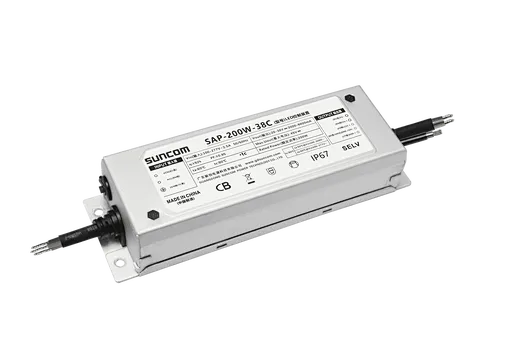

SAP 200W LED driver
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
P-Off-line programming dimming version
SAP 200W LED driver parameters
Input voltage: 100-277V
Output voltage: 20-38Vdc/27-56Vdc/95-286Vdc
Rated power: 200W
THD<10%/PF>0.95
Features of SAP 200W
Isolated, flicker free LED driver
Metal material case
Protections: Input UVP/OVP, out put OCP/SCP/OTP
Certifications:CB
Surge protection: 6/10KV
Efficiency: 92%~93%
IP grade: IP65
5 years warranty
Input UVP: If the input voltage is lower than 90Vac, the power will be reduced by half; if the input voltage is lower than 80Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.
Input OVP: If the input voltage is higher than 330Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.
Applications
Street lighting, industrial lighting, highbay lighting,etc
Model list
| Model | Rated Power | Input voltage | Output Voltage | Output Current | Size | THD(Typ.) | PF(Typ.) |
| SAP-200W-38A | 200W | 100-277V | 20-38V | 3000-6000mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-56A | 200W | 100-277V | 27-56V | 2500-4800mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-286A | 200W | 100-277V | 95-286V | 500-1050mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-38B | 200W | 100-277V | 20-38V | 3000-6000mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-56B | 200W | 100-277V | 27-56V | 2500-4800mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-286B | 200W | 100-277V | 95-286V | 500-1050mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-38C | 200W | 100-277V | 20-38V | 3000-6000mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-56C | 200W | 100-277V | 27-56V | 2500-4800mA | 186*60*38 | <10% | >0.95 |
| SAP-200W-286C | 200W | 100-277V | 95-286V | 500-1050mA | 186*60*38 | <10% | >0.95 |
