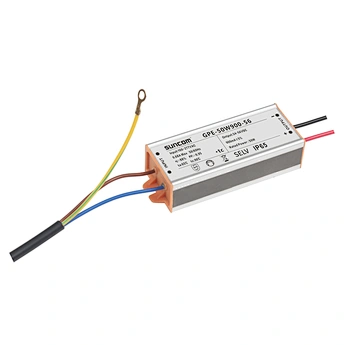

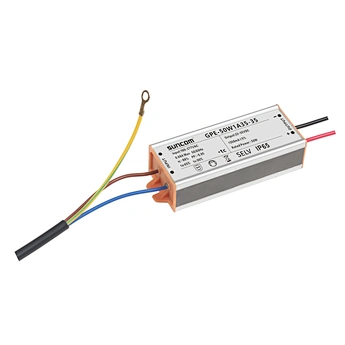

GPE 50W LED Driver
GPE-50W600-87,50W900-56,50W1A2-45,50W1A35-38,50W1A5-38
Boost your LED lighting efficiency with the GPE series LED driver. This product features a wide input voltage range and a constant current output, ensuring stable and reliable power supply to your LED lights. Its high efficiency and low ripple current also help prolong the lifespan of your LED lights. Ideal for outdoor lighting applications. Upgrade your lighting experience with the GPE series LED driver.
Quantity:
GPE 50W LED Flood Light Driver Parameters
Rated input voltage: 100-277V
Output voltage: 54-87V/34-56V/23-45V/22-38V
Rated power: 50W
THD＜15%/PF＞0.95
Features of LED Driver 50 Watt
High PF isolated semi-aluminum waterproof LED driver
Isolation LED driver, constant current mode output LED driver
Protection: Output OCP /SCP /OTP
IP grade: IP65
Surge protection grade:4KV
Efficiency: ≥89%
Working temperature: -40 ~ 65℃
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃
Working humidity: 20％ RH ~ 90％ RH
Storage humidity: 10％ RH ~ 90％ RH
Warranty: 2 years
Application of LED Driver 50W
LED driver for garden lighting, lawn lighting, flood lighting, three-proof lighting and other lighting lamps
Model list
| Model | Rated Power | Input Voltage | Output Voltage | Outpot Current | Product Size | Surge | Pf.(Typ) |
| GPE-50W600-87 | 50W | 100-277V | 54-87V | 600mA土5% | 103*37*24mm | 4KV | >0.95 |
| GPE-50W900-56 | 100-277V | 34-56V | 900mA土5% | 103*37*24mm | 4KV | >0.95 | |
| GPE-50W1A2-45 | 100-277V | 23-45V | 1200mA士5% | 103*37*24mm | 4KV | >0.95 | |
| GPE-50W1A35-38 | 100-277V | 22-38V | 1350mA士5% | 103*37*24mm | 4KV | >0.95 | |
| GPE-50W1A5-38 | 100-277V | 22-38V | 1500mA士5% | 103*37*24mm | 4KV | >0.95 |
