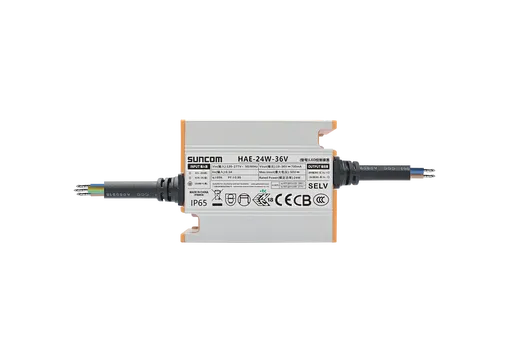

HAE 24W LED Driver
HAE-24W-36V,HAE-24W-42V,HAE-24W-68V,HAE-24W-72V
A-Adjustable potentiometer version
V-Current not adjustable version
V-Current not adjustable version
Quantity:
Parameter
Input voltage range: 100-277V
Output voltage: 19-36V/21-42V/34-68V/36-72V
Rated power: 24W
THD＜10%/PF＞0.95
Features
Special isolated driver for small LED street light.
Class Ⅰ & Class Ⅱ, patented design, compact size.
Constant current output , with power limitation for control mode
Efficiency: 85%（Typ.）
Class Ⅰ & Class Ⅱ, patented design, compact size.
Constant current output , with power limitation for control mode
Efficiency: 85%（Typ.）
Surge protection: 2.5/2.5KV
Metal material case, IP65
Protections:Input UVP, output SCP/OTP/OVP/OLP
Products certifications: CCC/CE/CB
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~ 80℃
Warranty: 5 years
Products certifications: CCC/CE/CB
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~ 80℃
Warranty: 5 years
Application
Small street light, explosion-proof light and others with compact power chamber
Model list
| Model | Rated Power | Input Voltage | Output Voltage | Outpot Current | Product Size | THD.(Typ) | PF.(Typ) |
| HAE-24W-36V | 24W | 120-277V | 19-36V | 700mA | 62*53*26mm | <10% | >0.95 |
| HAE-24W-42V | 120-277V | 21-42V | 600mA | 62*53*26mm | <10% | >0.95 | |
| HAE-24W-68V | 120-277V | 34-68V | 350mA | 62*53*26mm | <10% | >0.95 | |
| HAE-24W-72V | 120-277V | 36-72V | 300mA | 62*53*26mm | <10% | >0.95 |
| HAE-24W-XXX |
| More HAE product specifications |
