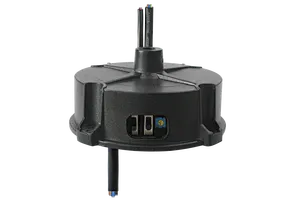

LCS-200H UFO driver

LCS-200H-300A,P,D,C,DD,DP,DDP,DC,DDC

A-Adjustable potentiometer version
P-Adjustable current + programmed dimming version
C-Adjustable current + programmed dimming + 12V auxiliary power
D-Adjustable current+ DIP swtich for power
DD-Adjustable current+ DIP swtich for power and CCT
DP-Adjustable current + programmed dimming version+DIP swtich for power
DDP-Adjustable current + programmed dimming version+DIP swtich for power and CCT
DC-Adjustable current + programmed dimming version+DIP swtich for power+12V auxiliary power
DDC-Adjustable current + programmed dimming version+DIP swtich for power and CCT+12V auxiliary power

Quantity:

Contact Now

Specifications

LCS 200H LED driver parameters

Input voltage: 100-277V(The rated input voltage:200-277Vac, half-power derating<180Vac)

Output voltage: 180-300Vdc

Rated power: 200W

THD<10%/PF>0.95

Features of LCS 200H

Non-Isolated, flicker free LED driver

Metal material case

Protections: Input UVP, out put OCP/SCP/OTP/OVP

Certifications:CCC/CE/CB

Surge protection: 4/6KV

Efficiency: 95.5%

IP grade: IP65

5 years warranty

Input Uvp: When Input Volate Is 100-120Vac, Power Will Be 80%;
When Input Voltage Is Less Then 95Vac, Power Will Be 50%.
Remark: Withstanding Voltage For Lamp Board≥3kV
Creepage Distance≥3.5Mm
※ Note: Installation Hole Diameter Is 113mm

Applications

Street lighting, industrial lighting, highbay lighting,etc

Model list

Model	Rated Power	Input Voltage	Output Voltage	Output Current	Product Size	THD.(Typ)	PF.(Typ)
LCS-200H-300A	200W	100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300P		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300C		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300D		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300DD		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300DP		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300DDP		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300DC		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200H-300DDC		100-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
