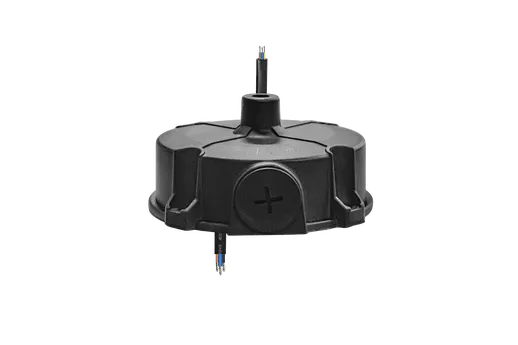

LCS-100W LED driver

LCS-100W-300A, 300P, 300C, 300D
A-Adjustable potentiometer version
P-Adjustable current + programmed dimming version
C-Adjustable current + programmed dimming + 12V auxiliary power
D-Adjustable current+ DIP swtich for power and CCT
Quantity:
Contact Now
Specifications

LCS 100W LED driver parameters

Input voltage: 120-277V

Output voltage: 180-300Vdc

Rated power: 100W

THD<10%/PF>0.95

Features of LCS 100W

Non-Isolated, flicker free LED driver

Metal material case

Protections: Input UVP, out put OCP/SCP/OTP/OVP

Certifications:CCC/ENEC-CE/SAA/CUL/UL/FCC/CB/CLASS P

Surge protection: 4/6KV

Efficiency: 94%

IP grade: IP65

5 years warranty

Input Uvp: When Input Volate Is 100-120Vac, Power Will Be 80%;
When Input Voltage Is Less Then 95Vac, Power Will Be 50%.
Remark: Withstanding Voltage For Lamp Board≥3Kv,
Creepage Distance≥3.5Mm
※ Note: Installation Hole Diameter Is 113Mm

Applications

Street lighting, industrial lighting, highbay lighting,etc

Model list

Model
Rated Power
Input Voltage
Output Voltage
Output Current
Product Size
THD.(Typ)
PF.(Typ)
LCS-100W-300A100W
120-277V
180-300V
250-500mA
φ128*58mm
<10%
>0.95
LCS-100W-300P
120-277V
180-300V
250-500mA
φ128*58mm
<10%
>0.95
LCS-100W-300C120-277V
180-300V
250-500mA
φ128*58mm
<10%
>0.95
LCS-100W-300D120-277V
180-300V
250-500mA
φ128*58mm
<10%
>0.95
